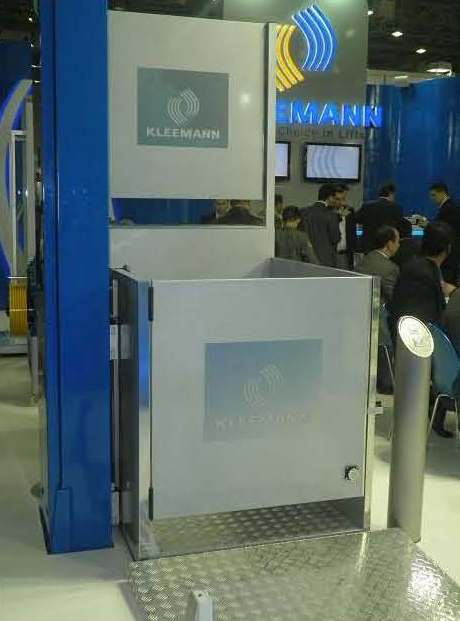

Vertiplat is a hydraulic vertical lifting system designed for disabled people, in order to have access to buildings where installation or operation of an elevator is not possible.

It is the most economical solution of vertical transportation for disabled people for travel up to 7m and can be easily installed at internal as well as external spaces.
Vertiplat is manufactured according to Machinery Directive 2006/42/EC and meets all safety requirements.

Specifications:
• Rated Load: 300Kg
• Travel: max 7m - Stops 3
• Max number of stops: 3
• Headroom: 2100mm
• Platform dimensions: 940Χ1270mm*
• Dimensions of required space: 1400Χ1250mm
• Motor: 1,5Κw – 230 V – 50Hz

Advantages:
• Min. Pit depth 80mm
• Manual rescue operation in case of power cut
• Installed at internal as well as external spaces
• Easy and fast installation
• MIDDLEEAST CE marking and Declaration of conformity
• MIDDLEEAST Technical Support, Guarantee and Quality
